이전 [Qt] gstreamer(3) - Pad, GSignal 를 통해 Pad에 대한 간단히 다뤄보았습니다. 이번 튜토리얼에서는 Pad에 대해 좀 더 자세히 살펴봅니다.



Basic tutorial 6: Media formats and Pad Capabilities

Please port this tutorial to python! Please port this tutorial to javascript! Goal Pad Capabilities are a fundamental element of GStreamer, although most of the time they are invisible because the framework handles them automatically. This somewhat theoret

gstreamer.freedesktop.org

Pad는 이전에도 살펴봤듯이 elements들의 입력과 출력을 담당합니다. Pad는 여러 기능(타입)들을 지원하고 오디오 데이터의 경우 범위로 지정할 수 있지만 Pad 간 통과하면서 같은 타입으로 고정됩니다.

Pad는 Pad templates로부터 생성되고 Pad template는 Pad가 가질 수 있는 기능들을 나타냅니다.

#include <QCoreApplication>
#include <QDebug>
#include "gst/gst.h"

/* Functions below print the Capabilities in a human-friendly format */
static gboolean print_field (GQuark field, const GValue * value, gpointer pfx) {
    gchar *str = gst_value_serialize (value);

    g_print ("%s  %15s: %s\n", (gchar *) pfx, g_quark_to_string (field), str);
    g_free (str);
    return TRUE;
}

static void print_caps (const GstCaps * caps, const gchar * pfx) {
    guint i;

    g_return_if_fail (caps != NULL);

    if (gst_caps_is_any (caps)) {
        g_print ("%sANY\n", pfx);
        return;
    }
    if (gst_caps_is_empty (caps)) {
        g_print ("%sEMPTY\n", pfx);
        return;
    }

    for (i = 0; i < gst_caps_get_size (caps); i++) {
        GstStructure *structure = gst_caps_get_structure (caps, i);

        g_print ("%s%s\n", pfx, gst_structure_get_name (structure));
        gst_structure_foreach (structure, print_field, (gpointer) pfx);
    }
}

/* Prints information about a Pad Template, including its Capabilities */
static void print_pad_templates_information (GstElementFactory * factory) {
    const GList *pads;
    GstStaticPadTemplate *padtemplate;

    g_print ("Pad Templates for %s:\n", gst_element_factory_get_longname (factory));
    if (!gst_element_factory_get_num_pad_templates (factory)) {
        g_print ("  none\n");
        return;
    }

    pads = gst_element_factory_get_static_pad_templates (factory);
    while (pads) {
        padtemplate = static_cast<GstStaticPadTemplate *>(pads->data);
        pads = g_list_next (pads);

        if (padtemplate->direction == GST_PAD_SRC)
            g_print ("  SRC template: '%s'\n", padtemplate->name_template);
        else if (padtemplate->direction == GST_PAD_SINK)
            g_print ("  SINK template: '%s'\n", padtemplate->name_template);
        else
            g_print ("  UNKNOWN!!! template: '%s'\n", padtemplate->name_template);

        if (padtemplate->presence == GST_PAD_ALWAYS)
            g_print ("    Availability: Always\n");
        else if (padtemplate->presence == GST_PAD_SOMETIMES)
            g_print ("    Availability: Sometimes\n");
        else if (padtemplate->presence == GST_PAD_REQUEST)
            g_print ("    Availability: On request\n");
        else
            g_print ("    Availability: UNKNOWN!!!\n");

        if (padtemplate->static_caps.string) {
            GstCaps *caps;
            g_print ("    Capabilities:\n");
            caps = gst_static_caps_get (&padtemplate->static_caps);
            print_caps (caps, "      ");
            gst_caps_unref (caps);

        }

        g_print ("\n");
    }
}

/* Shows the CURRENT capabilities of the requested pad in the given element */
static void print_pad_capabilities (GstElement *element, gchar *pad_name) {
    GstPad *pad = NULL;
    GstCaps *caps = NULL;

    /* Retrieve pad */
    pad = gst_element_get_static_pad (element, pad_name);
    if (!pad) {
        g_printerr ("Could not retrieve pad '%s'\n", pad_name);
        return;
    }

    /* Retrieve negotiated caps (or acceptable caps if negotiation is not finished yet) */
    caps = gst_pad_get_current_caps (pad);
    if (!caps)
        caps = gst_pad_query_caps (pad, NULL);

    /* Print and free */
    g_print ("Caps for the %s pad:\n", pad_name);
    print_caps (caps, "      ");
    gst_caps_unref (caps);
    gst_object_unref (pad);
}

int main(int argc, char *argv[])
{
    QCoreApplication a(argc, argv);

    GstElement *pipeline, *source, *sink;
    GstElementFactory *source_factory, *sink_factory;
    GstBus *bus;
    GstMessage *msg;
    GstStateChangeReturn ret;
    gboolean terminate = FALSE;

    /* Initialize GStreamer */
    gst_init (&argc, &argv);

    /* Create the element factories */
    source_factory = gst_element_factory_find ("audiotestsrc");
    sink_factory = gst_element_factory_find ("autoaudiosink");
    if (!source_factory || !sink_factory) {
        g_printerr ("Not all element factories could be created.\n");
        return -1;
    }

    /* Print information about the pad templates of these factories */
    print_pad_templates_information (source_factory);
    print_pad_templates_information (sink_factory);

    /* Ask the factories to instantiate actual elements */
    source = gst_element_factory_create (source_factory, "source");
    sink = gst_element_factory_create (sink_factory, "sink");

    /* Create the empty pipeline */
    pipeline = gst_pipeline_new ("test-pipeline");

    if (!pipeline || !source || !sink) {
        g_printerr ("Not all elements could be created.\n");
        return -1;
    }

    /* Build the pipeline */
    gst_bin_add_many (GST_BIN (pipeline), source, sink, NULL);
    if (gst_element_link (source, sink) != TRUE) {
        g_printerr ("Elements could not be linked.\n");
        gst_object_unref (pipeline);
        return -1;
    }

    /* Print initial negotiated caps (in NULL state) */
    g_print ("In NULL state:\n");
    print_pad_capabilities (sink, const_cast<gchar*>("sink"));

    /* Start playing */
    ret = gst_element_set_state (pipeline, GST_STATE_PLAYING);
    if (ret == GST_STATE_CHANGE_FAILURE) {
        g_printerr ("Unable to set the pipeline to the playing state (check the bus for error messages).\n");
    }

    /* Wait until error, EOS or State Change */
    bus = gst_element_get_bus (pipeline);
    do {
        msg = gst_bus_timed_pop_filtered (bus, GST_CLOCK_TIME_NONE, (GstMessageType)(GST_MESSAGE_ERROR | GST_MESSAGE_EOS | GST_MESSAGE_STATE_CHANGED));

        /* Parse message */
        if (msg != NULL) {
            GError *err;
            gchar *debug_info;

            switch (GST_MESSAGE_TYPE (msg)) {
            case GST_MESSAGE_ERROR:
                gst_message_parse_error (msg, &err, &debug_info);
                g_printerr ("Error received from element %s: %s\n", GST_OBJECT_NAME (msg->src), err->message);
                g_printerr ("Debugging information: %s\n", debug_info ? debug_info : "none");
                g_clear_error (&err);
                g_free (debug_info);
                terminate = TRUE;
                break;
            case GST_MESSAGE_EOS:
                g_print ("End-Of-Stream reached.\n");
                terminate = TRUE;
                break;
            case GST_MESSAGE_STATE_CHANGED:
                /* We are only interested in state-changed messages from the pipeline */
                if (GST_MESSAGE_SRC (msg) == GST_OBJECT (pipeline)) {
                    GstState old_state, new_state, pending_state;
                    gst_message_parse_state_changed (msg, &old_state, &new_state, &pending_state);
                    g_print ("\nPipeline state changed from %s to %s:\n",
                             gst_element_state_get_name (old_state), gst_element_state_get_name (new_state));
                    /* Print the current capabilities of the sink element */
                    print_pad_capabilities (sink, const_cast<gchar*>("sink"));
                }
                break;
            default:
                /* We should not reach here because we only asked for ERRORs, EOS and STATE_CHANGED */
                g_printerr ("Unexpected message received.\n");
                break;
            }
            gst_message_unref (msg);
        }
    } while (!terminate);

    /* Free resources */
    gst_object_unref (bus);
    gst_element_set_state (pipeline, GST_STATE_NULL);
    gst_object_unref (pipeline);
    gst_object_unref (source_factory);
    gst_object_unref (sink_factory);

    return a.exec();
}

이전 튜토리얼 까지는 gst_element_factory_make를 호출해 elemets를 생성했습니다. 이 예제에서는 gst_element_factory_find 함수를 통해 elementsfactory를 먼저 생성 후 이 factory를 통해 elements를 생성합니다.

/* Create the element factories */
source_factory = gst_element_factory_find ("audiotestsrc");
sink_factory = gst_element_factory_find ("autoaudiosink");
if (!source_factory || !sink_factory) {
    g_printerr ("Not all element factories could be created.\n");
    return -1;
}

/* Print information about the pad templates of these factories */
print_pad_templates_information (source_factory);
print_pad_templates_information (sink_factory);

/* Ask the factories to instantiate actual elements */
source = gst_element_factory_create (source_factory, "source");
sink = gst_element_factory_create (sink_factory, "sink");

그리고 그 factory의 pad template 정보들을 아래 함수를 통해 보여주고 있습니다.

/* Prints information about a Pad Template, including its Capabilities */
static void print_pad_templates_information (GstElementFactory * factory) {
    const GList *pads;
    GstStaticPadTemplate *padtemplate;

    g_print ("Pad Templates for %s:\n", gst_element_factory_get_longname (factory));
    if (!gst_element_factory_get_num_pad_templates (factory)) {
        g_print ("  none\n");
        return;
    }

    pads = gst_element_factory_get_static_pad_templates (factory);
    while (pads) {
        padtemplate = static_cast<GstStaticPadTemplate *>(pads->data);
        pads = g_list_next (pads);

        if (padtemplate->direction == GST_PAD_SRC)
            g_print ("  SRC template: '%s'\n", padtemplate->name_template);
        else if (padtemplate->direction == GST_PAD_SINK)
            g_print ("  SINK template: '%s'\n", padtemplate->name_template);
        else
            g_print ("  UNKNOWN!!! template: '%s'\n", padtemplate->name_template);

        if (padtemplate->presence == GST_PAD_ALWAYS)
            g_print ("    Availability: Always\n");
        else if (padtemplate->presence == GST_PAD_SOMETIMES)
            g_print ("    Availability: Sometimes\n");
        else if (padtemplate->presence == GST_PAD_REQUEST)
            g_print ("    Availability: On request\n");
        else
            g_print ("    Availability: UNKNOWN!!!\n");

        if (padtemplate->static_caps.string) {
            GstCaps *caps;
            g_print ("    Capabilities:\n");
            caps = gst_static_caps_get (&padtemplate->static_caps);
            print_caps (caps, "      ");
            gst_caps_unref (caps);

        }

        g_print ("\n");
    }
}

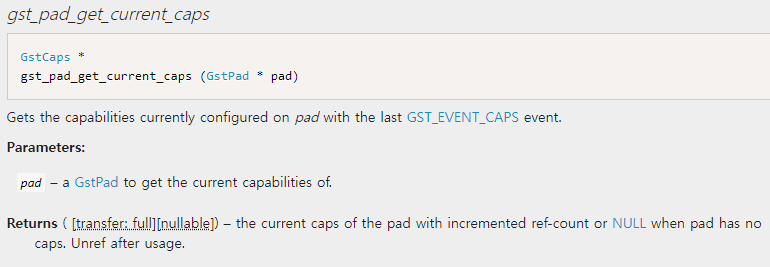

Pad의 현재 capabilities를 gst_pad_get_current_caps통해 확인하고 만약 실패한다면 query를 통해 가져옵니다.

/* Shows the CURRENT capabilities of the requested pad in the given element */
static void print_pad_capabilities (GstElement *element, gchar *pad_name) {
    GstPad *pad = NULL;
    GstCaps *caps = NULL;

    /* Retrieve pad */
    pad = gst_element_get_static_pad (element, pad_name);
    if (!pad) {
        g_printerr ("Could not retrieve pad '%s'\n", pad_name);
        return;
    }

    /* Retrieve negotiated caps (or acceptable caps if negotiation is not finished yet) */
    caps = gst_pad_get_current_caps (pad);
    if (!caps)
        caps = gst_pad_query_caps (pad, NULL);

    /* Print and free */
    g_print ("Caps for the %s pad:\n", pad_name);
    print_caps (caps, "      ");
    gst_caps_unref (caps);
    gst_object_unref (pad);
}
